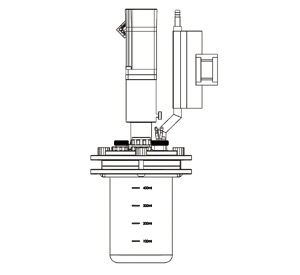

The best vessel system in the industry

● Adopt APPLIKON homology design concept, apply the most mature solution
● The pore adopts a modular quick-release design to reduce dead corner, to prevent contamination
● Exhaust gas condensation adopts anhydrous temperature control scheme
● The temperature of the vessel can be controlled by cooling water (circle bottom) and anhydrous temperature control (flat bottom)

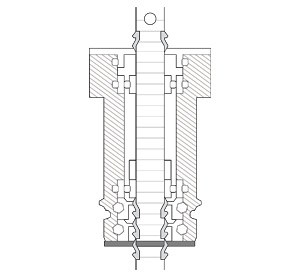

H-Mix® advanced mixing system

● Innovative no-seal design, industry first, patent protection
● No mechanical seal pollution and dead corner, the stirring system is cleaner and more hygienic
● Compared with the traditional machine seal stirring, the operation noise and shaking is small, the operation is more stable
● No installation guidance, no installation maintenance, use as input

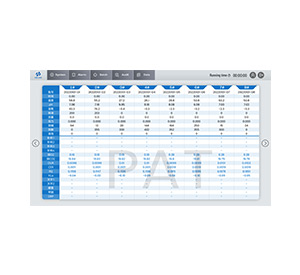

Excellent HPB-M controller design

● Construction of the latest Siemens hardware platform for SIMATIC S7-1200
● Local high-definition large-screen HMI+WinCC dual control design (WinCC optional)
● Bus control technology, parallel operation, precisely control
● Support software data analysis, comprehensive data information management and design of experiments (DoE)
● Built-in HPB-Control control software, which can monitor and control up to 8 groups of 16 vessels in total

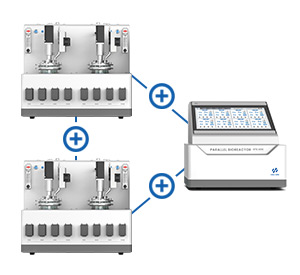

Building block modular BBM construction design

● Benefit by the application of the new bus technology, the product can realize the building block modular BBM construction design
● The main controller can control all the BBM modules built, no need to replace the controller and hardware
● Flexibility for laboratory-scale aerobic, anaerobic bacterial, yeast and fungal bioprocessing
● Specialized BBM modules such as gas mixing station are designed for cell process
● At present, BBM modules can be realized: building block modules such as feed pump module, automatic air intake module, exhaust gas module, etc., which will be continuously improved and adjusted in the future.

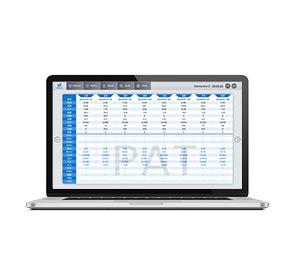

Computer analysis software HW-Analysis

● Siemens WinCC Basic Runtime Version
● HPB-Control computer extended control for remote monitoring, data storage, retrieval and analysis
● High-throughput data processing, scale-up of reactor parameters, optimization of production processes
● Complex process customization and calculation, recipe data editing

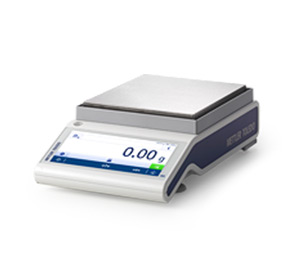

Feeding and weighing system

● Brand: METTLER-TOLEDO
● Maximum weighing: 2200g
● Precision: 0.01g
● Association: Association control through feeding, customize amount

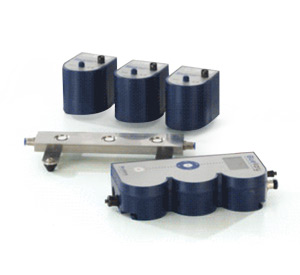

Exhaust gas analyzer

● Brand: German BlueSens
● CO2 range: 0-10%, 0-25%, 0-50% optional
● O2 Range: 0.1-25%, 0.1-50% optional
● Precision: ±3% of measured value, ±0.2% of range
● Realize display and definition calculation of CER, OUR, RQ

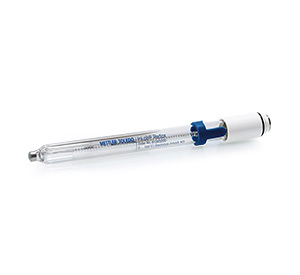

ORP motor

● Brand: METTLER-TOLEDO
● High temperature sterilization: -30°C-130°C
● HN-K integrated transmitter, including filtering and self-calibration, RS-485 communication

More accessories available

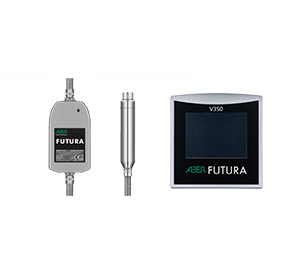

● ABER-Biomass imported live cell online concentration detection: it can measure live cell concentration, density, dry weight, biomass volume, capacitance, conductivity
● UK HEL exhaust gas analyzer: a more cost-effective exhaust gas analyzer
● Tangential flow ultrafiltration system, the system is directly connected to the filtration and control
