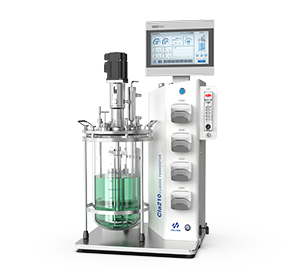

Cla210 Fermenter

Basic information

● Model: Cla210 series

● Vessels volume: 3L, 5L, 7L, 13L

● Heating method: insulation blanket electric heating method

● Control system: HF Control V2.2

● Supports 2-8 connection multiple connection extensions

Description Specification Optional items

	Comparable to Imported Manufacturing Process of Vessel ● The design ideas of vessel derived from Sartorius and Applinkon, Replaceable vessel ● Stable air-tightness, Convenient for laboratory operation with quick disassembly and assembly ● Stainless steel material of AISI 316L with fine grinding and electrolytic polishing. The overall manufacturing process is comparable to imported products from abroad
	All-round Control Unit ● Standard independent cold water control system, Imported CPC self-locking joint ● Wrap-around control cabinet ● Solid and removable base for flexible table placement

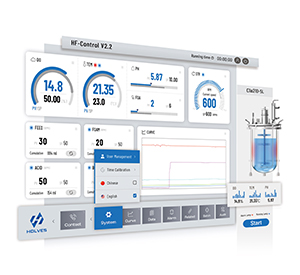

	Second Generation GUI ● Updated second generation GUI, Industry-leading design ● Digital dynamic dashboard: dynamic changes of fermentor are apparent to the eye ● Detailed design, Bright colours, Quick and simple operation ● Excellent functions

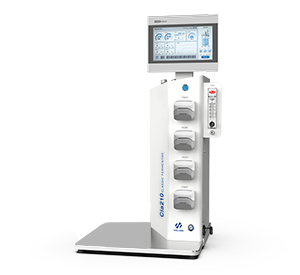

	Smallest Cla-M Controller ● Integrated cold water temperature control of independent vessel and condenser ● One of the smallest cabinets in the industry to date ● Glass rotor flowmeter can be upgraded to 2~6 channels ● Built-in HF-Control V2.2 control software: online monitoring, recording and curve displaying ● Available for external data communication of OPC XML DA via Ethernet

S/N	Category	Technical Parameters
1	Vessel	● Full volume: options include 3L, 5L, 7L,13L. No need to replace the controller ● Liquid volume: Max. 80% ● Design pressure: Max 0.15Mpa ● Fermentor lid inlets: Air inlet, Four-in-one feed inlet, Temperature tube, Cooling coil, pH/DO electrode inlet, Feed inlet, Alternate inlet, offgas condenser(Detachable)
2	Stirring system	● Servo motor with high precision and low noise. Special mechanical seal ● RPM: 0~1200rpm ±1rpm ● Fifteen sections speed: the program sets the required speed of each section
3	Temperature control system	● Electric heating mode of thermal blanket ● 24V safe voltage ● Temperature control range: Cooling water+5°C~65°C ±0.1°C ●Temperature sensor: Imported PT100 platinum electrode (quick disassembly resistant to high temperature)
4	Cold water module	● Integrated Cla-M controller, independent module ● Communication with host PLC, electromagnetic valve control the flow-off ● Cold water connector adopts imported self-locking quick coupling, which contains self-locking valve
5	Defoaming system	● Mechanical defoaming paddle with rake and compression ● Defoamer: Flow addition by peristaltic pump ● High-sensitive defoaming electrode
6	pH	● Range: 0~14.00pH, precision: ±0.02 ● Sterilization temperature: 0~130°C ● Controllor: HN-K integrated transmitter with filter, signal isolator and RS-485 communication
7	DO	● Range: 0~100% O2 sat, Precision: ±(1% of the numerical reading+6ppb) ● Sterilization temperature: 0~130°C ● Controllor: HN-K integrated transmitter with filter, signal isolator and RS-485 communication
8	Cla-M Controller HF-Control v2.2 control system	● 10 inch HMI touch screen, brightness>350 cd/m² ● Siemens SIMATIC - Smart Series processor ● Low voltage electrical appliances use schneider and other international well-known brands ● HF-Control V2.2 embedded control software configuration for full local operation ● FOA, pH, DO, T can realize automatic and manual control ● Curve display, historical data records and USB export functions of RPM, pH, DO, T ● Extensible: glass rotor flowmeter of 2~4channels, balance, external peristaltic pump, etc. ● External OPC XML DA via Ethernet data communication
9	Multi fermentors extension	● Multiple system expansion of 2-8 fermentors ● SLocal HMI centralized control ● Multi-fermentors adopt network cable bus communication mode
10	Air inlet system	● Air inlet: Air, Quick disassembly structure ● Imported glass rotor flowmeter ● Annular gas distributor, Optional microporous bubble distributor
11	Sampling	● Sterile sampling system: autoclave sterilization ● Syringe negative pressure design: remove bacteria contamination during sampling ● Dual design: users can also use traditional flame inoculation method
12	Power	● Input: AC110~240v/1.2kw ● Output: Motor, thermal blanket, peristaltic pump and other power parts use 24V safety voltage
